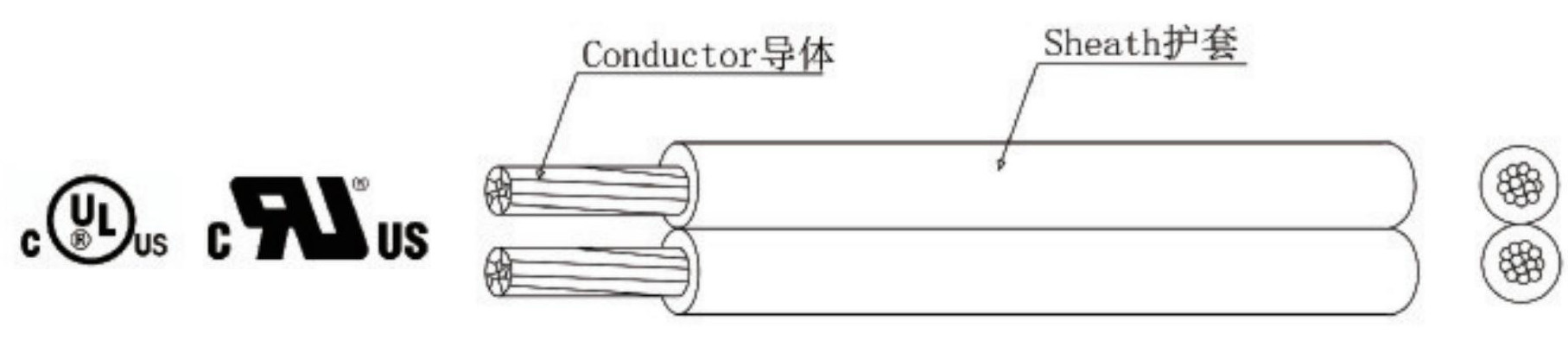

PVC Insulated Paraller Flexible Cords
PVC绝缘平行软线
Rating: 300V 80℃, 32AWG-16AWG
Standard: UL758
| 芯数 | AWG线规 | 导体截面(mm²) | 导体结构No./(mm) | 绝缘平均厚度(mm) | 最薄点(mm) | 最小外径(mm) | 护套建议外径(mm) | 20℃时绞合导体最大直流电阻(Ω/km) |
| 2 | 28 | 0.081 | 8/0.12 | 0.381 | 0.3302 | 1.16×2.32 | 1.30×2.60 | 223 |
| 2 | 26 | 0.129 | 7/0.16 | 0.381 | 0.3302 | 1.26×2.52 | 1.50×3.00 | 140 |
| 2 | 24 | 0.205 | 11/0.16 | 0.381 | 0.3302 | 1.42×2.84 | 1.60×3.20 | 87.6 |
| 2 | 22 | 0.326 | 17/0.16 | 0.381 | 0.3302 | 1.56×3.12 | 1.80×3.60 | 55.4 |
| 2 | 20 | 0.519 | 30/0.15 | 0.381 | 0.3302 | 1.73×3.46 | 1.90×3.80 | 34.6 |
| 2 | 18 | 0.824 | 47/0.15 | 0.381 | 0.3302 | 2.00×4.00 | 2.20×4.40 | 21.8 |
| 2 | 16 | 1.31 | 42/0.20 | 0.381 | 0.3302 | 2.31×4.62 | 2.50×5.00 | 13.7 |
