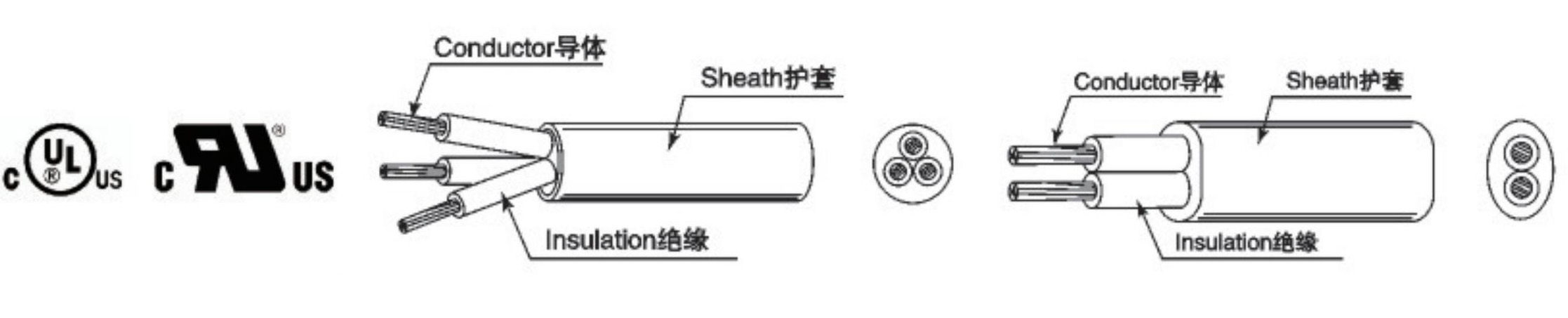

PVC Insulated PVC Sheathed Cords
PVC绝缘PVC护套软线
Rating: 300V 80℃
Standard: UL758
| 芯数 | AWG线规 | 导体截面(mm²) | 导体结构No./(mm) | 绝缘平均厚度(mm) | 芯线建议外径(mm) | 护套平均厚度(mm) | 最小外径(mm) | 护套建议外径(mm) | 20℃时绞合导体最大直流电阻(Ω/km) |
| 2 | 28 | 0.081 | 8/0.12 | 0.2286 | 0.85-1.02 | 0.762 | 3.1 | 3.3 | 223 |
| 2 | 26 | 0.129 | 7/0.16 | 0.2286 | 0.95-1.14 | 0.762 | 2.4*3.3 | 2.6*3.5 | 140 |
| 2 | 24 | 0.205 | 11/0.16 | 0.2286 | 1.06-1.27 | 0.762 | 3.5 | 3.9 | 87.6 |
| 2 | 22 | 0.326 | 17/0.16 | 0.2286 | 1.26-1.51 | 0.762 | 3.8 | 4.2 | 55.4 |
| 2 | 20 | 0.519 | 30/0.15 | 0.2286 | 1.46-1.75 | 0.762 | 4.2 | 4.7 | 34.6 |
| 2 | 18 | 0.824 | 47/0.15 | 0.2286 | 1.66-1.99 | 0.762 | 4.8 | 5.3 | 21.8 |
| 2 | 16 | 1.31 | 42/0.20 | 0.2286 | 2.01-2.41 | 0.762 | 5.5 | 6.1 | 13.7 |
| 3 | 28 | 0.081 | 8/0.12 | 0.2286 | 0.85-1.02 | 0.762 | 3.4 | 3.6 | 223 |
| 3 | 26 | 0.129 | 7/0.16 | 0.2286 | 0.95-1.14 | 0.762 | 3.55 | 3.75 | 140 |
| 3 | 24 | 0.205 | 11/0.16 | 0.2286 | 1.06-1.27 | 0.762 | 3.8 | 4.1 | 87.6 |
| 3 | 22 | 0.326 | 17/0.16 | 0.2286 | 1.26-1.51 | 0.762 | 4.1 | 4.5 | 55.4 |
| 3 | 20 | 0.519 | 30/0.15 | 0.2286 | 1.46-1.75 | 0.762 | 4.5 | 5 | 34.6 |
| 3 | 18 | 0.824 | 47/0.15 | 0.2286 | 1.66-1.99 | 0.762 | 5.1 | 5.6 | 21.8 |
| 3 | 16 | 1.31 | 42/0.20 | 0.2286 | 2.01-2.41 | 0.762 | 5.8 | 6.4 | 13.7 |
| 4 | 28 | 0.081 | 8/0.12 | 0.2286 | 0.85-1.02 | 0.762 | 3.7 | 3.9 | 223 |
| 4 | 26 | 0.129 | 7/0.16 | 0.2286 | 0.95-1.14 | 0.762 | 3.8 | 4 | 140 |
| 4 | 24 | 0.205 | 11/0.16 | 0.2286 | 1.06-1.27 | 0.762 | 4.1 | 4.4 | 87.6 |
| 4 | 22 | 0.326 | 17/0.16 | 0.2286 | 1.26-1.51 | 0.762 | 4.4 | 4.8 | 55.4 |
| 4 | 20 | 0.519 | 30/0.15 | 0.2286 | 1.46-1.75 | 0.762 | 4.9 | 5.4 | 34.6 |
| 4 | 18 | 0.824 | 47/0.15 | 0.2286 | 1.66-1.99 | 0.762 | 5.5 | 6 | 21.8 |
| 4 | 16 | 1.31 | 42/0.20 | 0.2286 | 2.01-2.41 | 0.762 | 6.3 | 7 | 13.7 |
| 5 | 28 | 0.081 | 8/0.12 | 0.2286 | 0.85-1.02 | 0.762 | 4 | 4.2 | 223 |
| 5 | 26 | 0.129 | 7/0.16 | 0.2286 | 0.95-1.14 | 0.762 | 4.2 | 4.4 | 140 |
| 5 | 24 | 0.205 | 11/0.16 | 0.2286 | 1.06-1.27 | 0.762 | 4.4 | 4.7 | 87.6 |
| 5 | 22 | 0.326 | 17/0.16 | 0.2286 | 1.26-1.51 | 0.762 | 4.8 | 5.2 | 55.4 |
| 5 | 20 | 0.519 | 30/0.15 | 0.2286 | 1.46-1.75 | 0.762 | 5.3 | 5.8 | 34.6 |
| 5 | 18 | 0.824 | 47/0.15 | 0.2286 | 1.66-1.99 | 0.762 | 6 | 6.6 | 21.8 |
| 5 | 16 | 1.31 | 42/0.20 | 0.2286 | 2.01-2.41 | 0.762 | 6.9 | 7.7 | 13.7 |
| 6 | 28 | 0.081 | 8/0.12 | 0.2286 | 0.85-1.02 | 0.762 | 4.2 | 4.4 | 223 |
| 6 | 26 | 0.129 | 7/0.16 | 0.2286 | 0.95-1.14 | 0.762 | 4.5 | 4.7 | 140 |
| 6 | 24 | 0.205 | 11/0.16 | 0.2286 | 1.06-1.27 | 0.762 | 4.8 | 5.1 | 87.6 |
| 6 | 22 | 0.326 | 17/0.16 | 0.2286 | 1.26-1.51 | 0.762 | 5.25 | 5.65 | 55.4 |
| 6 | 20 | 0.519 | 30/0.15 | 0.2286 | 1.46-1.75 | 0.762 | 5.8 | 6.3 | 34.6 |
| 6 | 18 | 0.824 | 47/0.15 | 0.2286 | 1.66-1.99 | 0.762 | 6.5 | 7.1 | 21.8 |
| 6 | 16 | 1.31 | 42/0.20 | 0.2286 | 2.01-2.41 | 0.762 | 7.5 | 8.3 | 13.7 |
