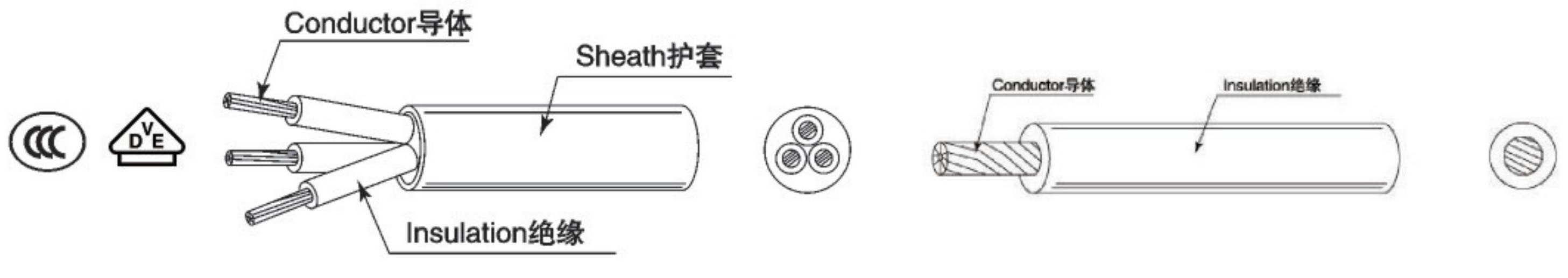

Rubber Insulated Rubber Sheathed Cords
橡胶绝缘橡胶护套软线
Rating: 450/750V
Standard: GB/T 5013.4-2008/IEC60245-4:2004
DIN EN 50525-2-21 (VDE 0285-525-2-21):2012-01; EN 50525-2-21:2011
| 芯数 | 导体截面(mm²) | 导体结构No./(mm) | 绝缘平均厚度(mm) | 芯线建议外径(mm) | 护套平均厚度(mm) | 外径范围(mm) | 护套建议外径(mm) | 20℃时绞合导体最大直流电阻(Ω/km) |
| 1 | 1.5 | 48/0.20 | 0.8 | 3.1-3.5 | 1.5 | 5.7-7.1 | 6.5 | 13.3 |
| 2.5 | 80/0.20 | 0.9 | 3.8-4.2 | 1.7 | 6.3-7.9 | 6.8 | 7.89 | |
| 4 | 56/0.30 | 1 | 4.4-4.8 | 1.8 | 7.2-9.0 | 8 | 4.95 | |
| 6 | 84/0.30 | 1 | 5.4-5.8 | 2 | 7.9-9.8 | 8.7 | 3.3 | |
| 2 | 1 | 32/0.20 | 0.8 | 2.9-3.3 | 1.3 | 7.7-10.0 | 9.2 | 19.5 |
| 1.5 | 48/0.20 | 0.8 | 3.1-3.5 | 1.5 | 8.5-11.0 | 10.1 | 13.3 | |
| 2.5 | 80/0.20 | 0.9 | 3.8-4.2 | 1.7 | 10.2-13.1 | 12 | 7.89 | |
| 4 | 56/0.30 | 1 | 4.4-4.8 | 1.8 | 11.8-15.1 | 14.3 | 4.95 | |
| 6 | 84/0.30 | 1 | 5.4-5.8 | 2 | 13.1-16.8 | 15.8 | 3.3 | |
| 3 | 1 | 32/0.20 | 0.8 | 2.9-3.3 | 1.4 | 8.3-10.7 | 10 | 19.5 |
| 1.5 | 48/0.20 | 0.8 | 3.1-3.5 | 1.6 | 9.2-11.9 | 10.8 | 13.3 | |
| 2.5 | 80/0.20 | 0.9 | 3.8-4.2 | 1.8 | 10.9-14.0 | 12.9 | 7.89 | |
| 4 | 56/0.30 | 1 | 4.4-4.8 | 1.9 | 12.7-16.2 | 15.5 | 4.95 | |
| 6 | 84/0.30 | 1 | 5.4-5.8 | 2.1 | 14.1-18.0 | 17.2 | 3.3 | |
| 4 | 1 | 32/0.20 | 0.8 | 2.9-3.3 | 1.5 | 9.2-11.9 | 10.8 | 19.5 |
| 1.5 | 48/0.20 | 0.8 | 3.1-3.5 | 1.7 | 10.2-13.1 | 12.3 | 13.3 | |
| 2.5 | 80/0.20 | 0.9 | 3.8-4.2 | 1.9 | 12.1-15.5 | 14.5 | 7.89 | |
| 4 | 56/0.30 | 1 | 4.4-4.8 | 2 | 14.0-17.9 | 16.7 | 4.95 | |
| 6 | 84/0.30 | 1 | 5.4-5.8 | 2.3 | 15.7-20.0 | 18.5 | 3.3 | |
| 5 | 1 | 32/0.20 | 0.8 | 2.9-3.3 | 1.6 | 10.2-13.1 | 12.3 | 19.5 |
| 1.5 | 48/0.20 | 0.8 | 3.1-3.5 | 1.8 | 11.2-14.4 | 13.5 | 13.3 | |
| 2.5 | 80/0.20 | 0.9 | 3.8-4.2 | 2 | 13.3-17.0 | 16 | 7.89 | |
| 4 | 56/0.30 | 1 | 4.4-4.8 | 2.2 | 15.7-20.0 | 18.8 | 4.95 | |
| 6 | 84/0.30 | 1 | 5.4-5.8 | 2.5 | 17.5-22.2 | 20.8 | 3.3 |
