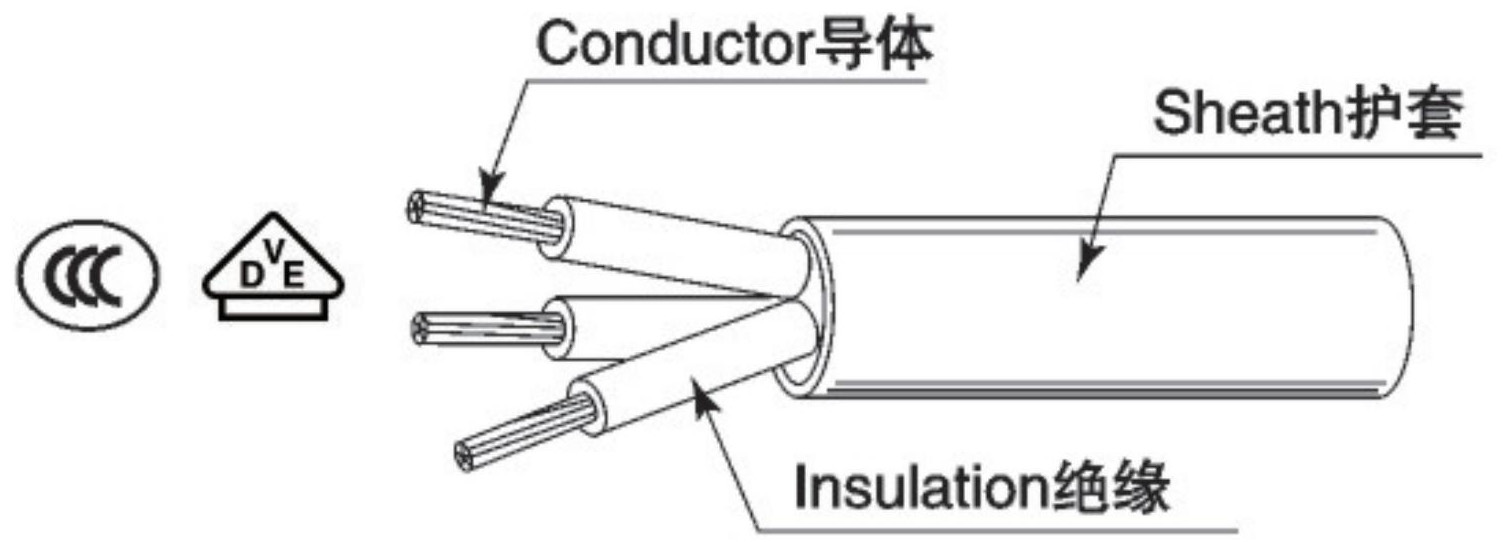

Rubber Insulated Rubber Sheathed Cords
橡胶绝缘橡胶护套软线
Rating: 300/500V
Standard: GB/T 5013.4-2008/IEC60245-4:2004
DIN EN 50525-2-21 (VDE 0285-525-2-21):2012-01; EN 50525-2-21:2011
| 芯数 | 导体截面(mm²) | 导体结构No./(mm) | 绝缘平均厚度(mm) | 芯线建议外径(mm) | 护套平均厚度(mm) | 外径范围(mm) | 护套建议外径(mm) | 20℃时绞合导体最大直流电阻(Ω/km) |
| 2 | 0.75 | 42/0.15 | 0.6 | 2.20-2.60 | 0.8 | 5.7-7.4 | 6.4 | 26 |
| 1 | 32/0.20 | 0.6 | 2.40-2.70 | 0.9 | 6.1-8.0 | 6.8 | 19.5 | |
| 1.5 | 48/0.20 | 0.8 | 3.00-3.30 | 1 | 7.6-9.8 | 8.1 | 13.3 | |
| 2.5 | 80/0.20 | 0.9 | 3.60-4.00 | 1.1 | 9.0-11.6 | 10.2 | 7.98 | |
| 3 | 0.75 | 42/0.15 | 0.6 | 2.20-2.60 | 0.9 | 6.2-8.1 | 6.8 | 26 |
| 1 | 32/0.20 | 0.6 | 2.40-2.70 | 0.9 | 6.5-8.5 | 7.2 | 19.5 | |
| 1.5 | 48/0.20 | 0.8 | 3.00-3.30 | 1 | 8.0-10.4 | 9.2 | 13.3 | |
| 2.5 | 80/0.20 | 0.9 | 3.60-4.00 | 1.1 | 9.6-12.4 | 10.8 | 7.98 | |
| 4 | 0.75 | 42/0.15 | 0.6 | 2.20-2.60 | 0.9 | 6.8-8.8 | 7.6 | 26 |
| 1 | 32/0.20 | 0.6 | 2.40-2.70 | 0.9 | 7.1-9.3 | 8.2 | 19.5 | |
| 1.5 | 48/0.20 | 0.8 | 3.00-3.30 | 1.1 | 9.0-11.6 | 10 | 13.3 | |
| 2.5 | 80/0.20 | 0.9 | 3.60-4.00 | 1.2 | 10.7-13.8 | 11.8 | 7.98 | |
| 5 | 0.75 | 42/0.15 | 0.6 | 2.20-2.60 | 1 | 7.6-9.9 | 8.6 | 26 |
| 1 | 32/0.20 | 0.6 | 2.40-2.70 | 1 | 8.0-10.3 | 9 | 19.5 | |
| 1.5 | 48/0.20 | 0.8 | 3.00-3.30 | 1.1 | 9.8-12.7 | 10.8 | 13.3 | |
| 2.5 | 80/0.20 | 0.9 | 3.60-4.00 | 1.3 | 11.9-15.3 | 13.2 | 7.98 |
